SWO-1525L5.3-8N1R
Features & Applications
Oblong
Multimedia Applications
Full Range; High Watt
| Height | 5.3 mm |
|---|---|
| Length | 25 mm |
| Width | 15 mm |
| SPL | 83 dB |
| Impedance | 8 Ω |
| Frequency | 1.1 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | Fabric | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 83 | Measured 83±3dB at 1W and 30cm. | ||
| Power W | 1 | 1.5 | ||
| Frequency kHz | 1.1 | 1.1 | 20 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 25 | |||
| Height mm | 5.3 | |||
| Weight g | 25 |

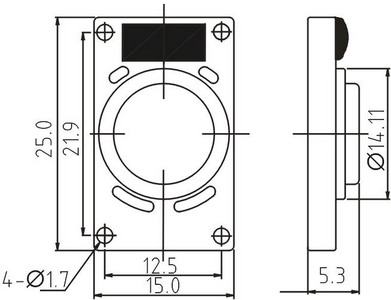

Dimension Drawing
