SWO-1635L5.5-8N1R1
Features & Applications
Oblong
LCD; Notebook PC Applications
Full Range
| Height | 5.5 mm |
|---|---|
| Length | 35 mm |
| Width | 16 mm |
| SPL | 89 dB |
| Impedance | 8 Ω |
| Frequency | 0.75 kHz |
| Power | 1 W |
| Mounting | Custom |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 89 | Measured 89±3dB at 1W and 30cm, 1kHz,1.2kHz,1.5kHz,2kHz | ||
| Power W | 1 | 1.5 | Rated Power operating continuously for 100 hours @ 2.83V. | |
| Frequency kHz | 0.75 | 20 | Rated F0 ± 20% | |
| Available Input Impedance Ω | 4 | 8 | 64 | ±15% |
| Width mm | 16 | 35 | ||
| Height mm | 5.5 | |||
| Weight g | 2.7 | |||
| Mounting | Custom |

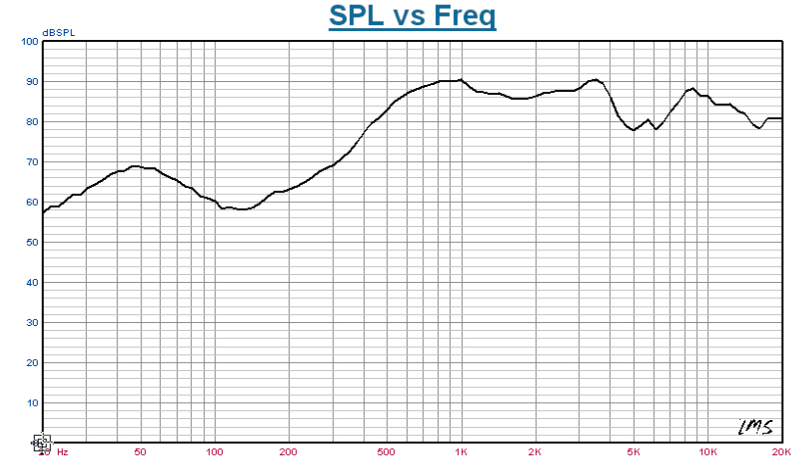

Characteristic Response

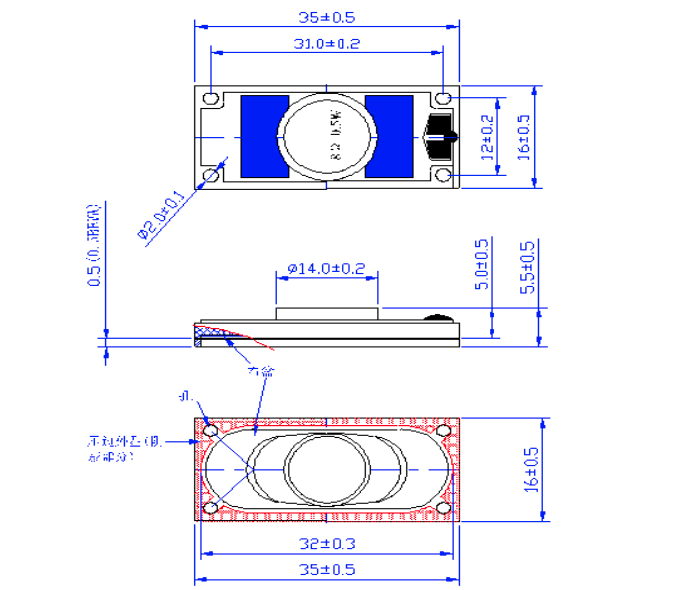

Dimension Drawing

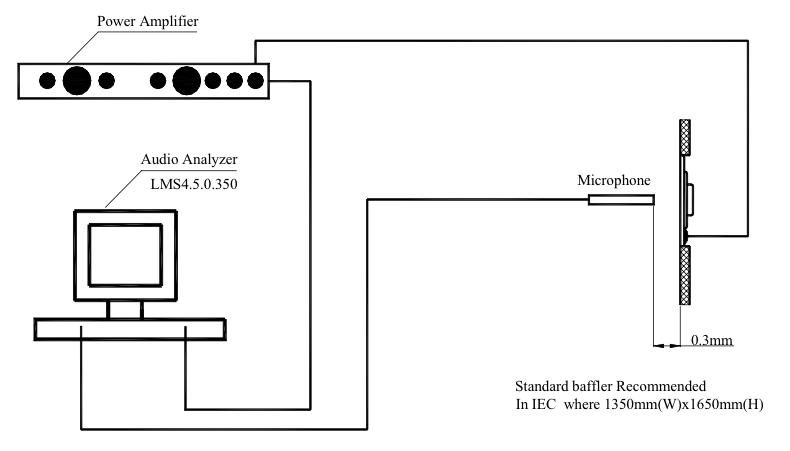

Typical Test Circuit
