SWO-2027L6.0-8N0.8R
Features & Applications
Oblong
LCD; Notebook PC Applications
Full Range
| Height | 6 mm |
|---|---|
| Length | 27 mm |
| Width | 20 mm |
| SPL | 85 dB |
| Impedance | 8 Ω |
| Frequency | 0.5 kHz |
| Power | 0.8 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Fabric | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 85 | Measured 85±3dB at 0.8W and 30cm. | ||
| Power W | 0.8 | 1.5 | ||
| Frequency kHz | 0.5 | 0.5 | 20 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 27 | |||
| Height mm | 6 | |||
| Weight g | 27 |

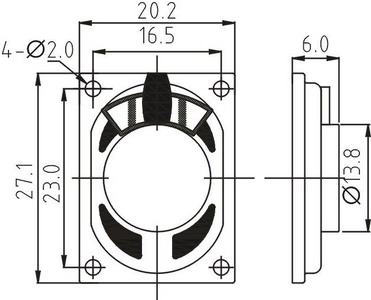

Dimension Drawing
