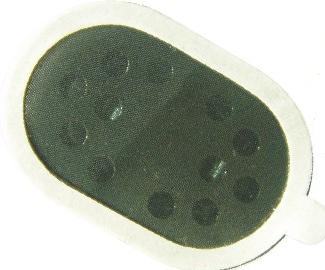

SWO-2030L5.3-8N1.5R
Features & Applications
Oblong
LCD; Notebook PC Applications
Water-proof
| Height | 5.3 mm |
|---|---|
| Length | 30 mm |
| Width | 20 mm |
| SPL | 92 dB |
| Impedance | 8 Ω |
| Frequency | 0.9 kHz |
| Power | 1.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | PET | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 92 | Measured 92±3dB at 1.5W and 30cm. | ||
| Power W | 1.5 | 2 | ||
| Frequency kHz | 0.9 | 0.9 | 12 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 30 | |||
| Height mm | 5.3 | |||
| Weight g | 30 |

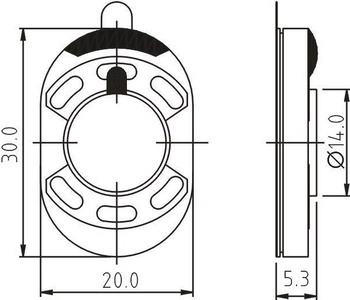

Dimension Drawing
