SWO-2035L9.8-8N2R
Features & Applications
Oblong
LCD; Notebook PC Applications
Full Range
| Height | 9.8 mm |
|---|---|
| Length | 35 mm |
| Width | 20 mm |
| SPL | 80 dB |
| Impedance | 8 Ω |
| Frequency | 0.65 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | Fabric | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 80 | Measured 80±3dB at 2W and 30cm. | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.65 | 0.65 | 15 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 35 | |||
| Height mm | 9.8 | |||
| Weight g | 35 |

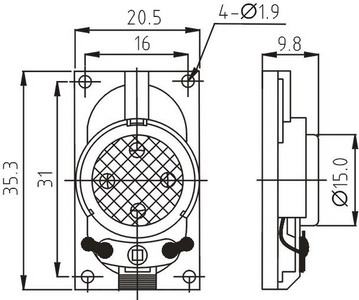

Dimension Drawing
