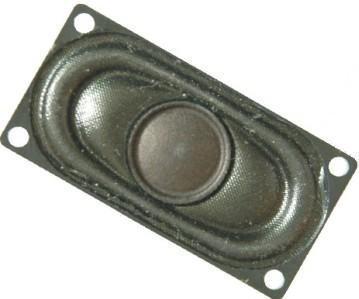

SWO-2040L8.5-32N1R
Features & Applications
Oblong
LCD; Notebook PC Applications
Full Range
| Height | 8.5 mm |
|---|---|
| Length | 40 mm |
| Width | 20 mm |
| SPL | 90 dB |
| Impedance | 32 Ω |
| Frequency | 0.6 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Plastic | |||
| Type of Diaphragm | Fabric | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 90 | Measured 90±3dB at 1W and 30cm. | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.6 | 0.6 | 20 | |
| Available Input Impedance Ω | 4 | 32 | 64 | |
| Width mm | 40 | |||
| Height mm | 8.5 | |||
| Weight g | 40 |

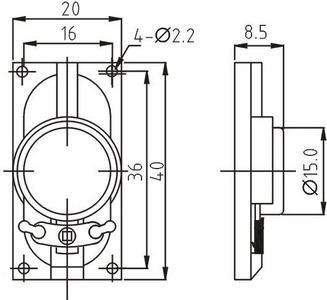

Dimension Drawing
