| Characteristic | Minimum | Rated | Maximum | Notes |
|---|
| Type of Magnet | | NdFeB | | |
| Type of Frame | | Metal | | |
| Type of Diaphragm | | Mylar | | |

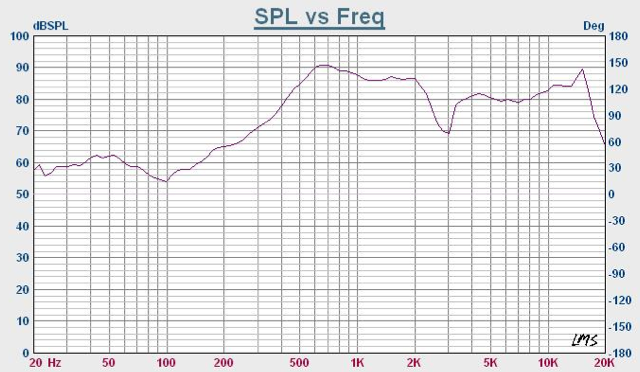

| Sound Pressure Level dB at 30cm | 92.4 | | | measured 88±3dB 0.5 m (A1000,1200,1500,2000,Hz Average) |
| Power W | | 2 | 3 | operating continuously for 100 hours at 2.82 V. Max Power for 1 min on & 2 min off, cycling for 10 times at 3.46 V |
| Frequency kHz | | 0.7 | 20 | at 2.0 V with harmonic distortion < 5 % At 1000 Hz |
| Available Input Impedance Ω | | 4 | | ± 15 % at 1kHz |
| Temperature ºC | | | 85 | |

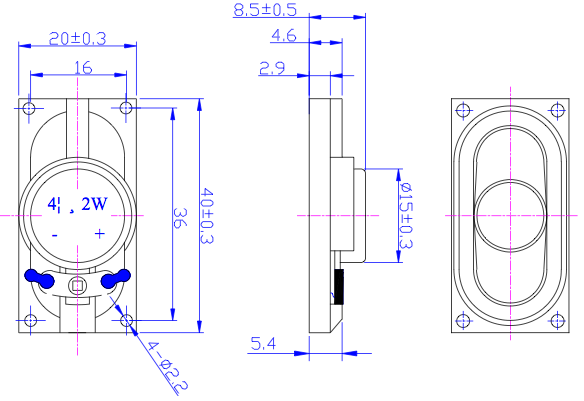

| Width mm | | 20 | 40 | |
| Height mm | | 8.5 | | |
| Weight g | | 7.77 | | |
| Mounting | | Custom | | |
| Termination | | lead wire | | |
