SWP-24.6L1.8-5R
| Height | 1.8 mm |
|---|---|
| Length | 24.6 mm |
| Width | 16.3 mm |
| SPL | 76.4 dB |
| Frequency | 0.85 kHz |
| Power | 9 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 76.4 | Measured 92±3dB(SPL) at 0.05m. Frequencies: 1500 / 18800 / 2300 / 3000Hz | ||
| Power W | 9 | |||
| Frequency kHz | 0.85 | ±20% | ||
| Width mm | 16.3 | 24.6 | ±0.2mm | |
| Height mm | 1.8 | ±0.2mm |

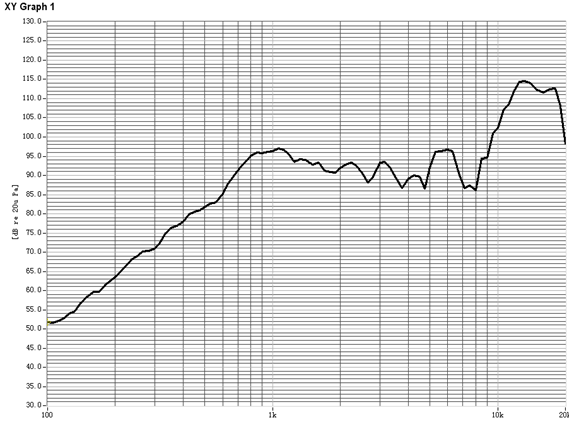

Characteristic Response

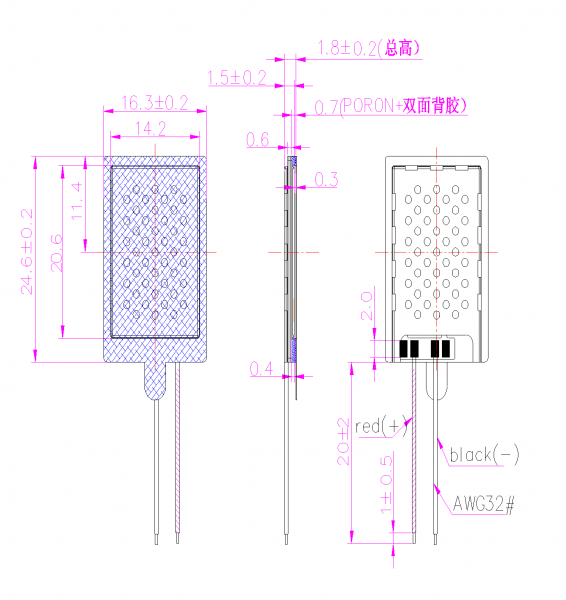

Dimension Drawing
