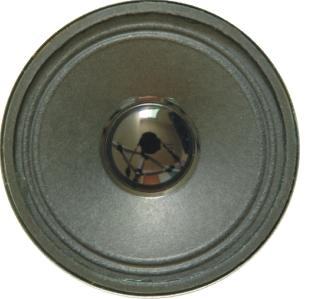

SWC-64R19.5-50N1R
Features & Applications
Cone
Voice Applications
Low profile
| Diameter | 64 mm |
|---|---|
| Height | 19.5 mm |
| SPL | 91.44 dB |
| Impedance | 50 Ω |
| Frequency | 0.34 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Paper | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 91.44 | Measured 87±3dB at 1W and 50cm. | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.34 | 0.34 | 20 | |
| Available Input Impedance Ω | 4 | 50 | 64 | |
| Width mm | 64 | |||
| Height mm | 19.5 |

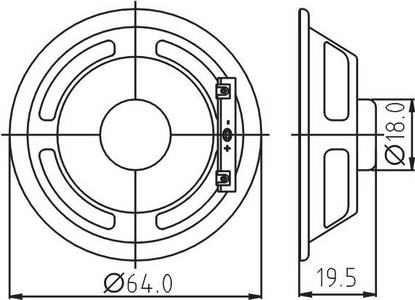

Dimension Drawing
