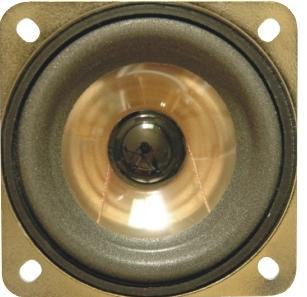

SWC-65S34.6-22F2R
Features & Applications
Cone
Voice Applications
External
| Height | 34.6 mm |
|---|---|
| Length | 65 mm |
| Width | 65 mm |
| SPL | 91.44 dB |
| Impedance | 22 Ω |
| Frequency | 0.2 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | Ferrite | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 91.44 | Measured 87±3dB at 2W and 50cm. | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.2 | 0.2 | 20 | |
| Available Input Impedance Ω | 4 | 22 | 64 | |
| Width mm | 65 | |||
| Height mm | 34.6 |

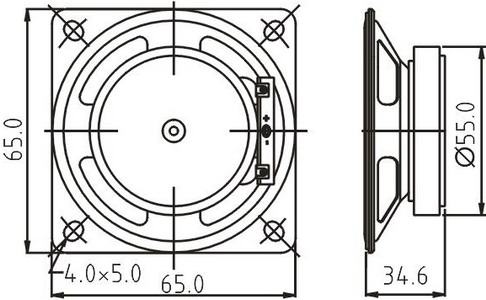

Dimension Drawing
