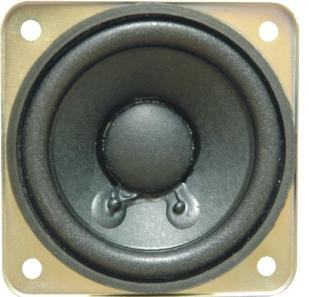

SWC-70S38-4F12R
Features & Applications
Cone
Voice Applications
External
| Height | 38 mm |
|---|---|
| Length | 70 mm |
| Width | 70 mm |
| SPL | 84.44 dB |
| Impedance | 4 Ω |
| Frequency | 0.15 kHz |
| Power | 12 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | Ferrite | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 84.44 | Measured 80±3dB at 12W and 50cm. | ||
| Power W | 12 | 15 | ||
| Frequency kHz | 0.15 | 0.15 | 10 | |
| Available Input Impedance Ω | 4 | 4 | 64 | |
| Width mm | 70 | |||
| Height mm | 38 |

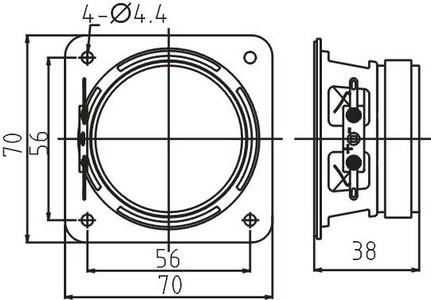

Dimension Drawing
