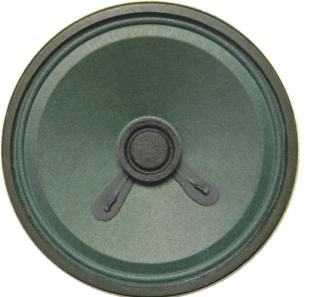

SWC-77R17.5-16N1R
Features & Applications
Cone
Voice Applications
High Profile
| Diameter | 77 mm |
|---|---|
| Height | 17.5 mm |
| SPL | 91.44 dB |
| Impedance | 16 Ω |
| Frequency | 0.35 kHz |
| Power | 1 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Paper | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 91.44 | Measured 87±3dB at 1W and 50cm. | ||
| Power W | 1 | 2 | ||
| Frequency kHz | 0.35 | 0.35 | 5 | |
| Available Input Impedance Ω | 3 | 16 | 64 | |
| Width mm | 77 | |||
| Height mm | 17.5 |

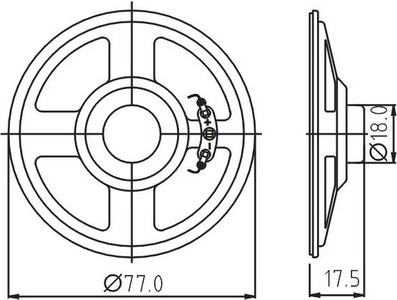

Dimension Drawing
