SWM-109.5I27-8N5R
| Height | 27 mm |
|---|---|
| Length | 109.5 mm |
| Width | 17.4 mm |
| SPL | 96.4 dB |
| Impedance | 8 Ω |
| Frequency | 0.6 kHz |
| Power | 5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 88±dB(SPL) at 1W and 0.5m. Frequencies: 1.0 / 1.2 / 1.5 / 2.0kHz | ||
| Power W | 5 | 8 | ||
| Frequency kHz | 0.6 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 17.4 | 109.5 | ||
| Height mm | 27 |

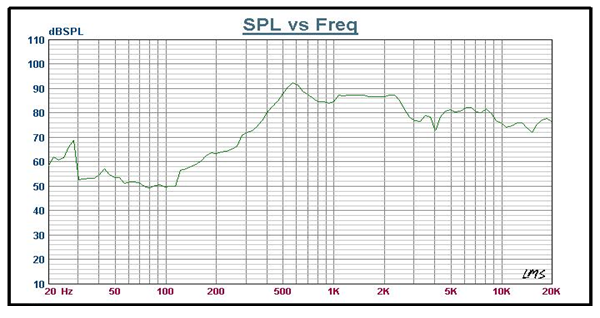

Characteristic Response

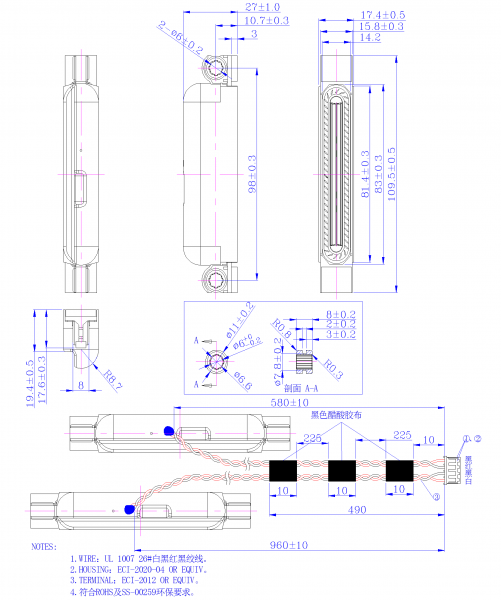

Dimension Drawing
