SWM-126O24-8N8R
| Height | 23.6 mm |
|---|---|
| Length | 126 mm |
| Width | 34.5 mm |
| SPL | 102.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.25 kHz |
| Power | 8 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 80±3dB(SPL) at 1W and 1m. Frequencies: 800 / 1000 / 1200 / 1500Hz | ||
| Power W | 8 | 10 | ||
| Frequency kHz | 0.25 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 34.5 | 126 | ||
| Height mm | 23.6 |

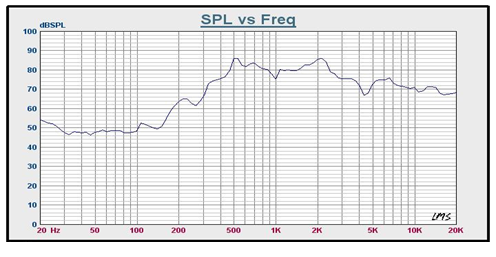

Characteristic Response

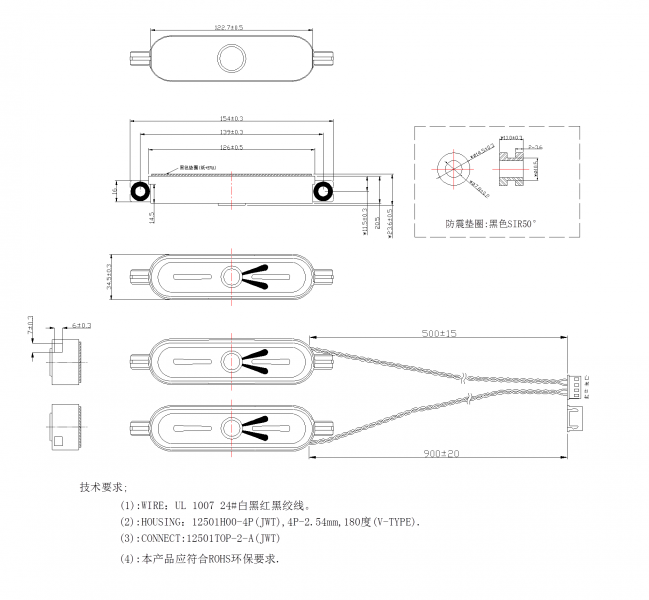

Dimension Drawing
