SWM-134O28.8-8A10R
| Height | 28.8 mm |
|---|---|
| Length | 134 mm |
| Width | 36 mm |
| SPL | 102.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.22 kHz |
| Power | 10 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 82±3dB(SPL) at 1W and 1m. Frequencies: 600 / 800 / 1000 / 1200Hz | ||
| Power W | 10 | 12 | ||
| Frequency kHz | 0.22 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 36 | 134 | ||
| Height mm | 28.8 |

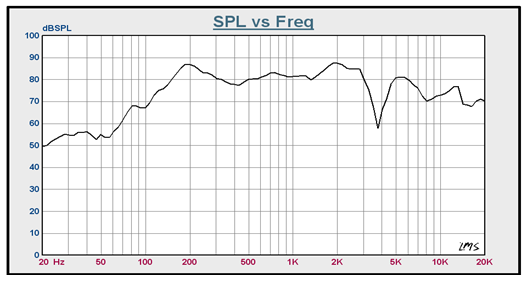

Characteristic Response

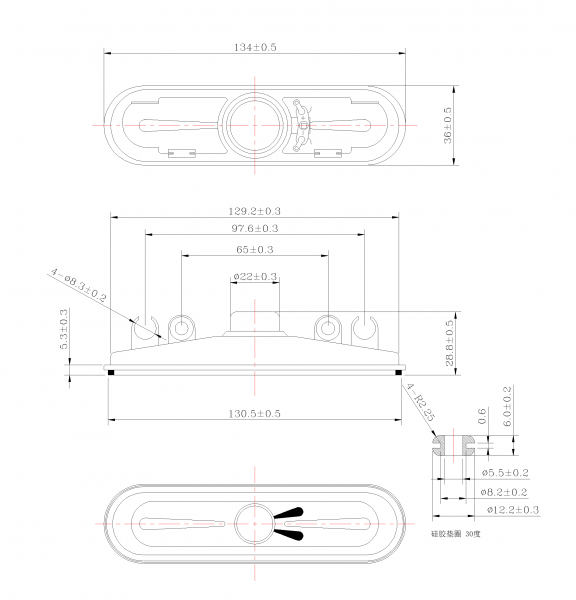

Dimension Drawing
