SWM-164L12.5-8N10R
| Height | 12.5 mm |
|---|---|
| Length | 164 mm |
| Width | 100 mm |
| SPL | 102.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.22 kHz |
| Power | 10 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 85±dB(SPL) at 1W and 1m. Frequencies: 0.8 / 1.0 / 1.2 / 1.5kHz | ||
| Power W | 10 | 15 | ||
| Frequency kHz | 0.22 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 100 | 164 | ||
| Height mm | 12.5 |

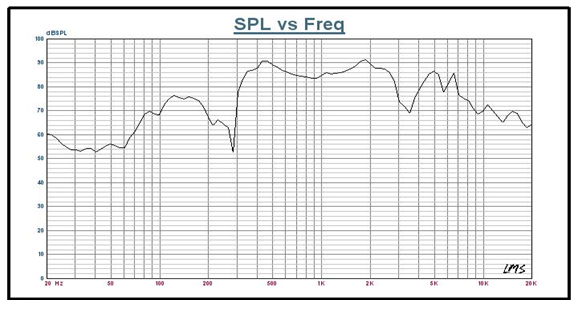

Characteristic Response

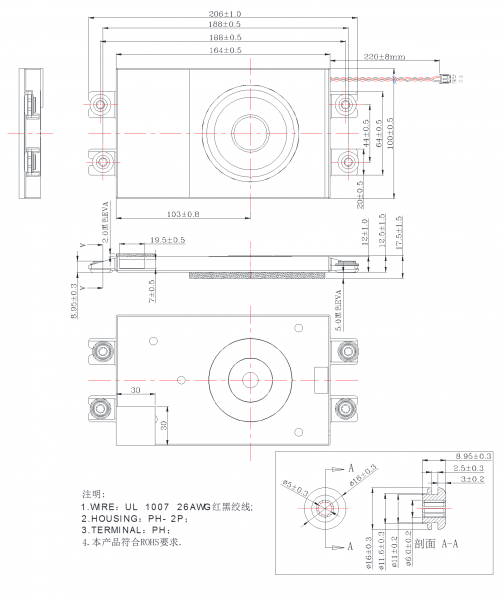

Dimension Drawing
