SWM-191I36.5-16F10R
| Height | 36.5 mm |
|---|---|
| Length | 191 mm |
| Width | 41 mm |
| SPL | 102.5 dB |
| Impedance | 16 Ω |
| Frequency | 0.18 kHz |
| Power | 10 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 80±3dB(SPL) at 1W and 1m. Frequencies: 500 / 600 / 800 / 1000Hz | ||
| Power W | 10 | 15 | ||
| Frequency kHz | 0.18 | ±20% | ||
| Available Input Impedance Ω | 16 | |||
| Width mm | 41 | 191 | ±0.5mm | |
| Height mm | 36.5 | ±1mm |

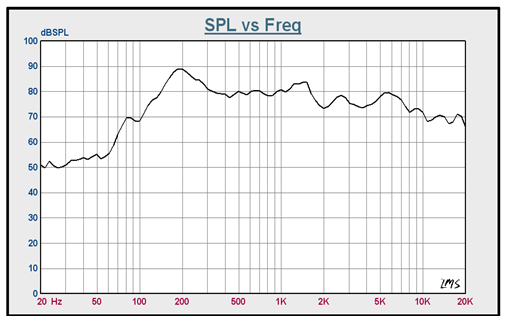

Characteristic Response

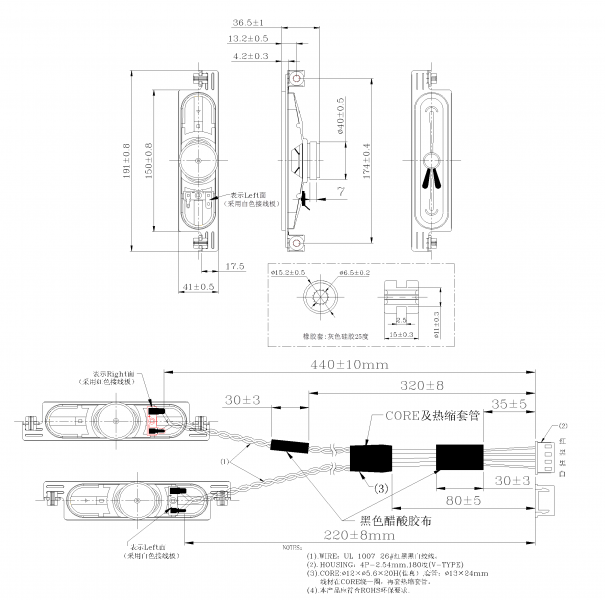

Dimension Drawing
