SWM-52I9-8N1.5R
| Height | 9 mm |
|---|---|
| Length | 52 mm |
| Width | 14 mm |
| SPL | 92 dB |
| Impedance | 8 Ω |
| Frequency | 1 kHz |
| Power | 1.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 92 | Measured 85±3dB(SPL) at 1W and 0.3m. Frequencies: 1000 / 1200 / 1500 / 2000Hz | ||
| Power W | 1.5 | 2 | ||
| Frequency kHz | 1 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 14 | 52 | ±0.5mm | |
| Height mm | 9 | ±0.5mm |

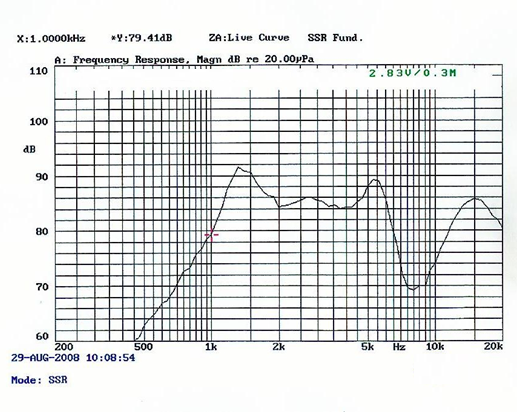

Characteristic Response

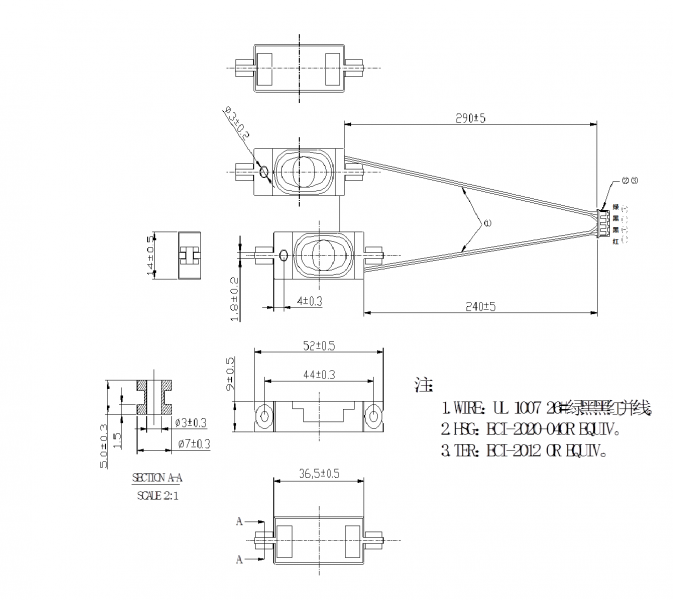

Dimension Drawing
