SWM-55I25.5-4N5R
| Height | 25.5 mm |
|---|---|
| Length | 55 mm |
| Width | 55 mm |
| SPL | 96.4 dB |
| Impedance | 4 Ω |
| Frequency | 0.57 kHz |
| Power | 5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 87±3dB(SPL) at 1W and 0.5m. Frequencies: 1000 / 1200 / 1500 / 2000Hz | ||
| Power W | 5 | 6 | ||
| Frequency kHz | 0.57 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 55 | ±0.5mm | ||
| Height mm | 25.5 | ±0.8mm |

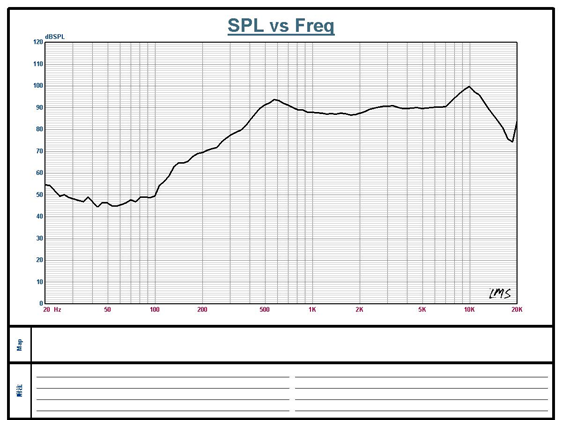

Characteristic Response

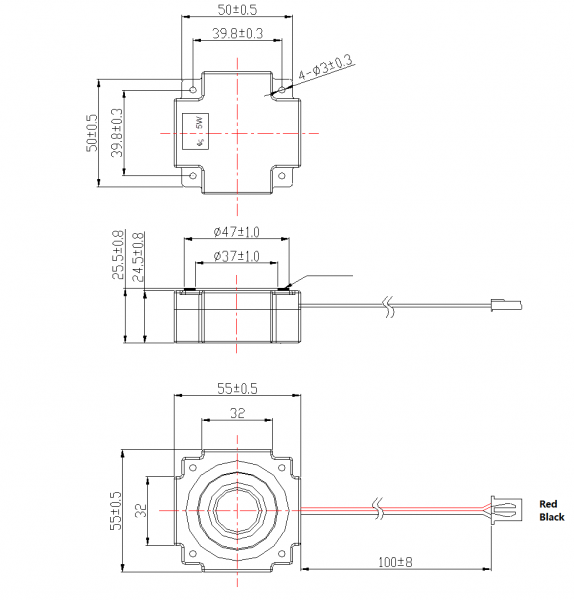

Dimension Drawing
