SWM-63.2I16.5-4N2R
| Height | 16.5 mm |
|---|---|
| Length | 63.2 mm |
| Width | 22.3 mm |
| SPL | 96.4 dB |
| Impedance | 4 Ω |
| Frequency | 0.4 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 96.4 | Measured 80dB(SPL) at 1W and 0.5m. Frequencies: 1.5 / 2.0 / 2.5 / 3.0kHz | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.4 | ±20% | ||
| Available Input Impedance Ω | 4 | |||
| Width mm | 22.3 | 63.2 | ||
| Height mm | 16.5 |

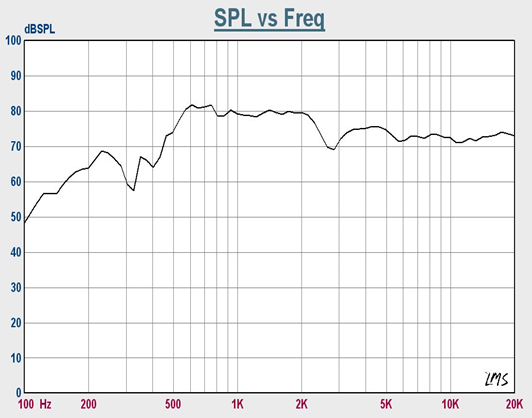

Characteristic Response

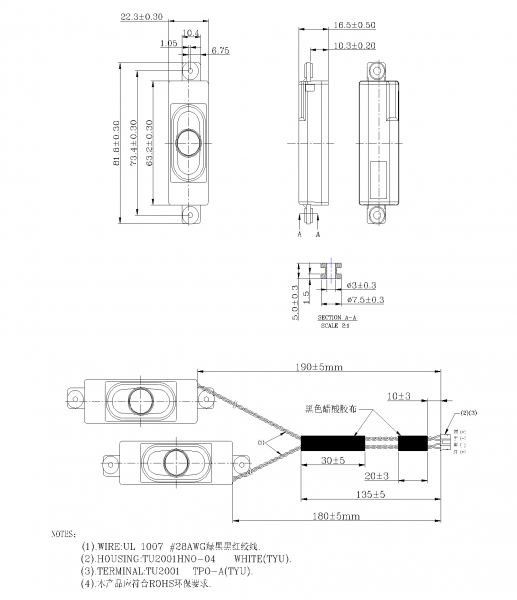

Dimension Drawing
