SWM-65I4.7-8N0.5R
| Height | 4.7 mm |
|---|---|
| Length | 65 mm |
| Width | 23 mm |
| SPL | 82.5 dB |
| Impedance | 8 Ω |
| Frequency | 0.22 kHz |
| Power | 0.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 82.5 | Measured 88±3dB(SPL) at 0.1W and 0.1m. Frequencies: 1.0 / 1.5 / 1.5 / 2.0kHz | ||
| Power W | 0.5 | 1 | ||
| Frequency kHz | 0.22 | ±20% | ||
| Available Input Impedance Ω | 8 | |||
| Width mm | 23 | 65 | ||
| Height mm | 4.7 |

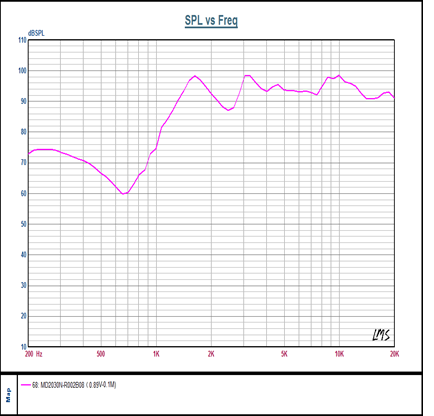

Characteristic Response
Dimension Drawing
