SWM-98.4L20-16N3R
| Height | 20 mm |
|---|---|
| Length | 98.4 mm |
| Width | 23 mm |
| SPL | 102.5 dB |
| Impedance | 16 Ω |
| Frequency | 0.4 kHz |
| Power | 3 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 102.5 | Measured 83±3dB(SPL) at 1W and 1m. Frequencies: 800 / 1000 / 1200 / 1500Hz | ||
| Power W | 3 | 4 | ||
| Frequency kHz | 0.4 | ±20% | ||
| Available Input Impedance Ω | 16 | |||
| Width mm | 23 | 98.4 | ±0.5mm | |
| Height mm | 20 | ±0.5mm |

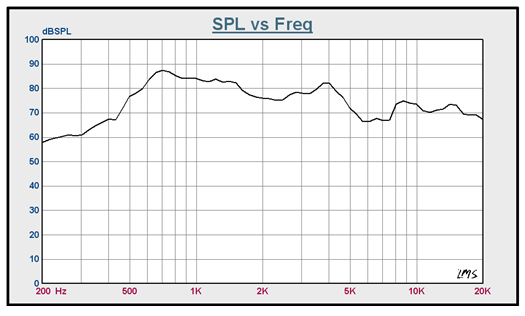

Characteristic Response

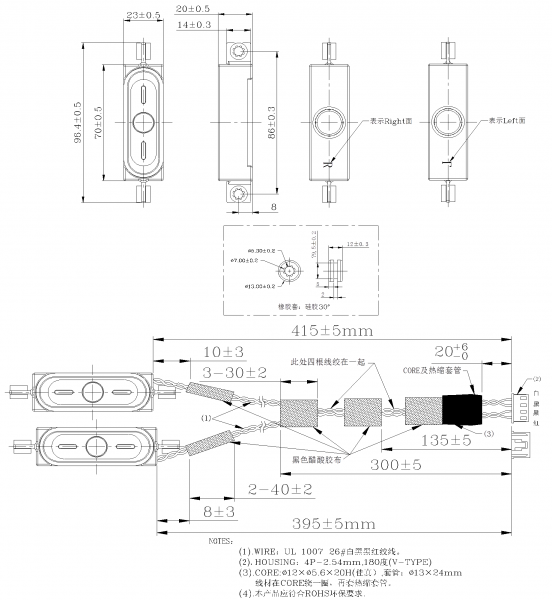

Dimension Drawing
