SWO-3070L19.4-8N2.5R
Features & Applications
Oblong
LCD; Notebook PC Applications
Full Range
| Height | 19.4 mm |
|---|---|
| Length | 70 mm |
| Width | 30 mm |
| SPL | 79 dB |
| Impedance | 8 Ω |
| Frequency | 0.45 kHz |
| Power | 2.5 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 79 | Measured 79±3dB at 2.5W and 30cm. | ||
| Power W | 2.5 | 4 | ||
| Frequency kHz | 0.45 | 0.45 | 20 | |
| Available Input Impedance Ω | 4 | 8 | 64 | |
| Width mm | 70 | |||
| Height mm | 19.4 | |||
| Weight g | 70 |

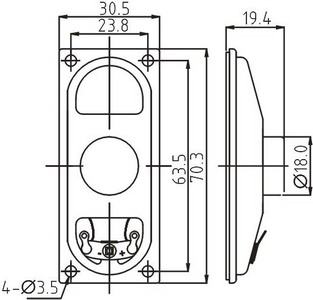

Dimension Drawing
