SWO-3558L19.1-4N2R
Features & Applications
Oblong
LCD; Notebook PC Applications
Full Range; Low fo
| Height | 19.1 mm |
|---|---|
| Length | 58 mm |
| Width | 35 mm |
| SPL | 83 dB |
| Impedance | 4 Ω |
| Frequency | 0.27 kHz |
| Power | 2 W |
We are sorry, the datasheet is not available here, please send us a message so that we can help.
Electrical Specifications
| Characteristic | Minimum | Rated | Maximum | Notes |
|---|---|---|---|---|
| Type of Magnet | NdFeB | |||
| Type of Frame | Metal | |||
| Type of Diaphragm | Complex | |||
| Type | Magnetic | |||
| Sound Pressure Level dB at 30cm | 83 | Measured 83±3dB at 2W and 30cm. | ||
| Power W | 2 | 3 | ||
| Frequency kHz | 0.27 | 0.27 | 20 | |
| Available Input Impedance Ω | 4 | 4 | 64 | |
| Width mm | 58 | |||
| Height mm | 19.1 | |||
| Weight g | 58 |

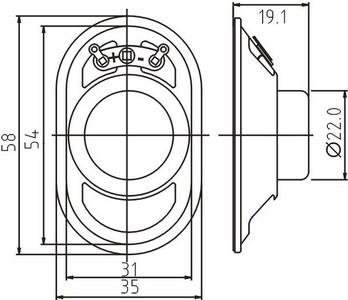

Dimension Drawing
